Le piattaforme AM2+ vanno via via affinandosi sempre di più, in attesa dell' imminente arrivo delle soluzioni AMD desktop a 45 nm.

Gigabyte presenta la propria soluzione basata sull'ultimo chipset AMD, il 790, in versione GX con grafica integrata full DirectX 10 compliant.

Il Southbridge è anch'esso il massimo disponibile per piattaforme AM2+, il modello SB750.

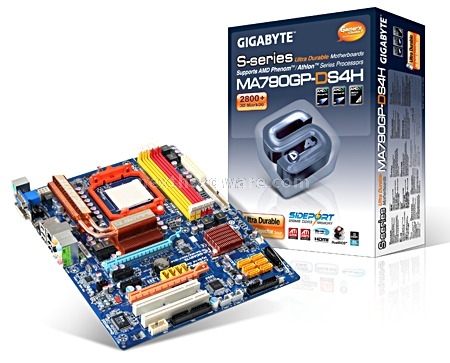

Gigabyte GA-MA790GP-DS4H: AM2+ con grafica integrata 1

Gigabyte MA790GP-DS4H


Eccovi una tabella riassuntiva delle caratteristiche:


Processore

Support for Socket AM2+/ AM2 processors: AMD Phenomâ„¢ FX processor/ AMD Phenomâ„¢ X4 processor/ AMD Phenomâ„¢ X3 processor/ AMD Athlonâ„¢ X2 processor/ AMD Athlonâ„¢ processor/ AMD Sempronâ„¢ X2 processor/ AMD Sempronâ„¢ processor


Hyper Transport Bus

5200/2000 MT/s

Chipset

North Bridge: AMD 790GX

South Bridge: AMD SB750


Memoria

4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory (Note 1)

Dual channel memory architecture

Support for DDR2 1066 (Note 2)/800/667 MHz memory modules


Memoria Integrata

128MB DDR3 SidePort memory

Connettori Interni I/O

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x floppy disk drive connector

1 x IDE connector

6 x SATA 3Gb/s connectors

1 x CPU fan header

2 x system fan header

1 x power fan header

1 x front panel header

1 x front panel audio header

1 x CD In connector

1 x S/PDIF In/Out header

2 x IEEE 1394a header

4 x USB 2.0/1.1 headers

1 x parallel port header

1 x serial port header

1 x chassis intrusion header

1 x power LED header



Realtek ALC889A codec

High Definition Audio

2/4/5.1/7.1-channel

Support for Dolby ® Home Theater (Note 3)

Support for S/PDIF In/Out

Support for CD In


Slot di espansione

1 x PCI Express x16 slot, running at x16 (PCIEX16_1) (Note 4)

1 x PCI Express x16 slot, running at x8 (PCIEX8_1)
(The PCIEX16_1 and PCIEX8_1 slots support ATI Hybrid CrossFireX technology, ATI CrossFireX technology and conform to PCI Express 2.0 standard.)

3 x PCI Express x1 slots

2 x PCI slots


Connettori esterni I/O

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x D-Sub port

1 x DVI-D port (Note 5)

1 x HDMI port

1 x optical S/PDIF Out connector

1 x IEEE 1394a port

4 x USB 2.0/1.1 ports

1 x RJ-45 port

6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)


Fattore di forma

ATX Form Factor; 30.5cm x 24.4cm

Monitoraggio HW

System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

CPU overheating warning

CPU/System fan fail warning

CPU/System fan speed control

Bios

2 x 8 Mbit flash

Use of licensed AWARD BIOS

Support for DualBIOSâ„¢

PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b


Software in bundle

Norton Internet Security (OEM version)

Sistemi operativi

Supports Microsoft Windows Vista/XP

Altre caratteristiche

Support for @BIOS

Support for Download Center

Support for Q-Flash

Support for EasyTune (Note 7)

Support for Xpress Install

Support for Xpress Recovery2

Support for Virtual Dual BIOS


Note

(Note 1) Due to Windows Vista/XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) Whether 1066 MHz memory speed is supported depends on the CPU being used.
(Note 3) For Windows Vista/XP 32-bit operating system only.
(Note 4) The DVI-D port does not support D-Sub connection by adapter.
(Note 5) Whether the CPU/system fan speed control function is supported will depend on the CPU/ system cooler you install.
(Note 6) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you installed.
(Note 7) Available functions in EasyTune may differ by motherboard model.
