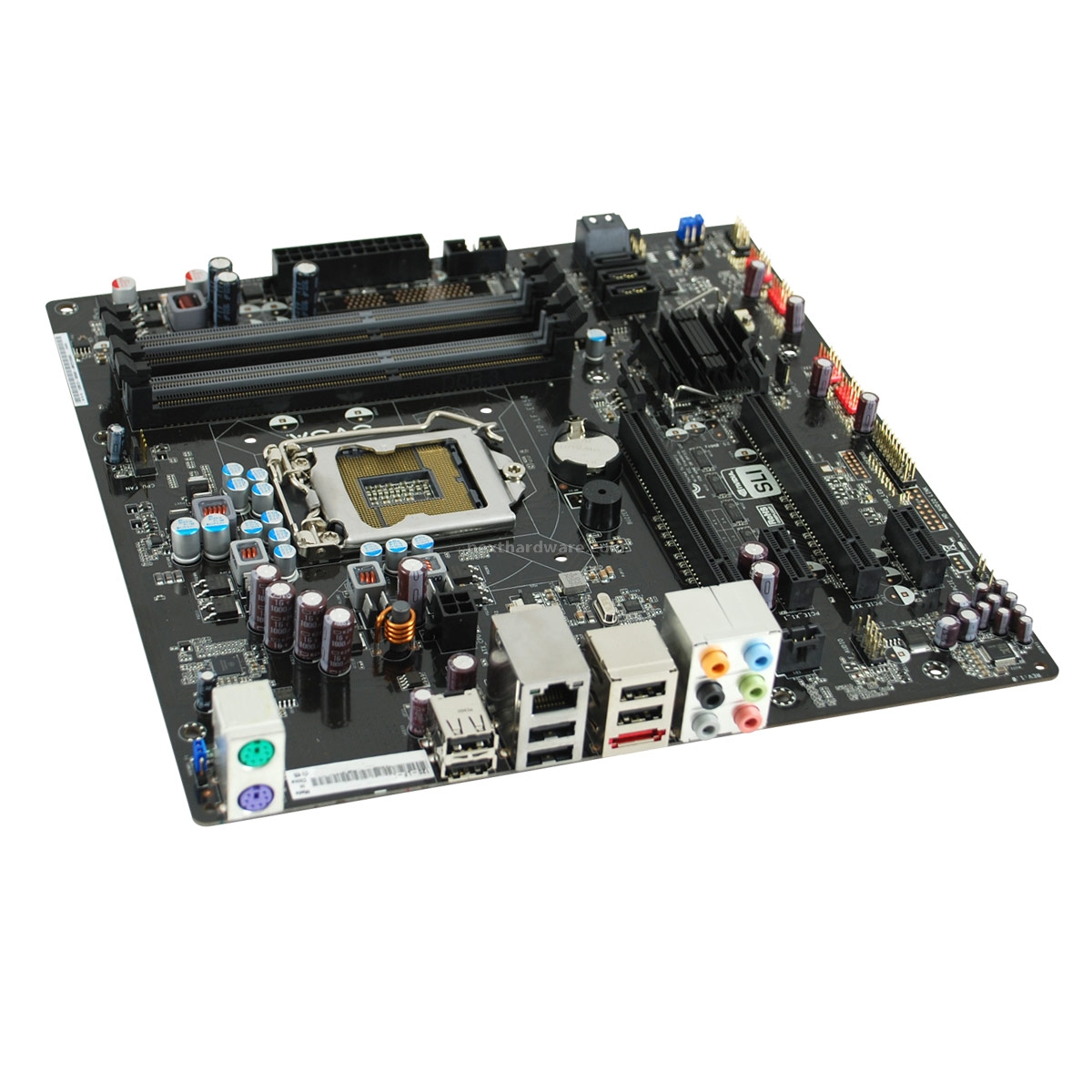

EVGA ha presentato una nuova motherboard sviluppata sul chipset Intel P55 disponibile al prezzo di circa 120$ e denominata P55 V.
La scheda supporta i processori Intel con socket 1156 e supporta fino a 16GB di DDR3 1333MHz in modalità dual channel, dispone di due slots PCIe x8 e due PCIe x1, sei connettori SATA da 300MB/sec con supporto al RAID 0, RAID1, RAID 0+1, RAID5, JBOD.
Specifiche:
Performance
Based on Intel P55 chipset
Supports Intel Socket 1156 Processors
Memory
4 x 240-pin DIMM sockets
Dual Channel DDR3
Maximum of 16GB of DDR3 1333MHz
Expansion Slot
2 x PCIe x8, 2 x PCIe x1
0 x 32-bit PCI, support for PCI 2.1
Storage I/O
x UltraDMA133
6 x Serial ATA 300MB/sec with support for RAID 0, RAID1, RAID 0+1, RAID5, JBOD
Integrated Peripherals
8 Channel High Definition
1 x 10/100/1000
Multi I/O
1 x PS2 Keyboard
14 x USB2.0 ports (4 external + 8 internal headers)
Audio connector (Line-in, Line-out, MIC)
FireWire
Form Factor
mATX Form Factor
Length: 9.6in - 243.84mm
Width: 9.6in - 243.84mm
| | |
