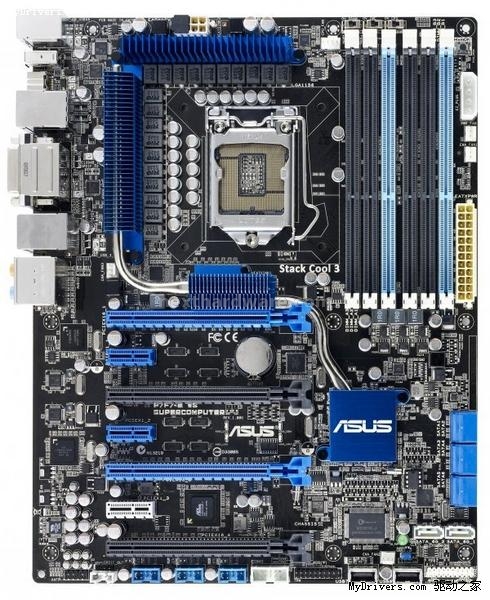

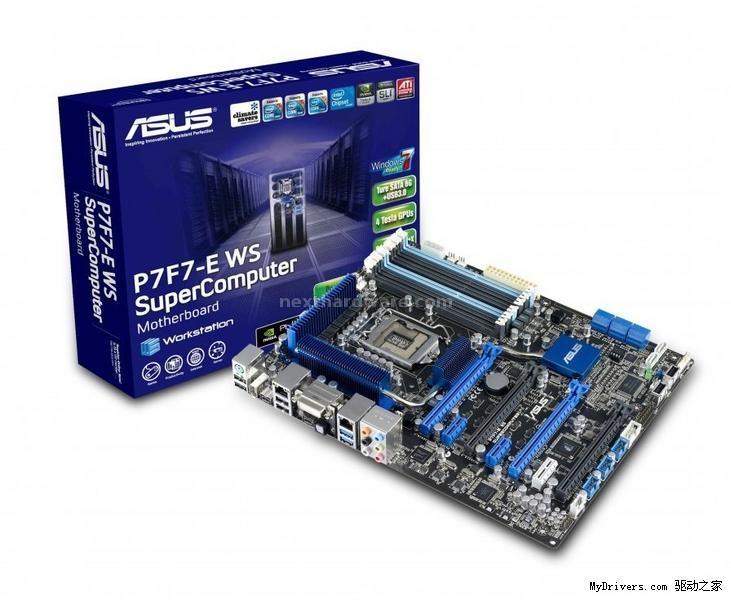

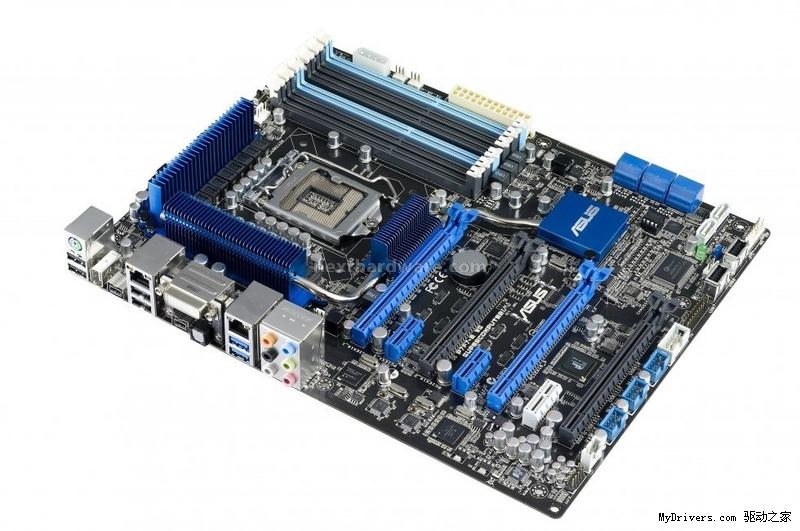

Asus presenta la sua nuova scheda madre P7F7-E WS SuperComputer dedicata alle workstation, sviluppata sul chipset Intel Ibex Peak 3450, affiancato al NVIDIA NF200 permette l'utilizzo di quattro schede video e il supporto alle cpu Intel LGA1156 Xeon 3400, Core i7, Core i5 e Core i3.
La P7F7-E WS è dotata di 6 slots per le memorie con il supporto fino a 16GB di DDR3 2000/1600/1333MHz, un'alimentazione a 16+3 fasi, quattro slots PCI-Express x16 e tre slots PCI-Express x1, due porte SATA 6GB/s e sei porte SATA 3GB/s, due porte USB 3.0 e 12 USB 2.0 e tre porte IEEE 1394b.
Non è stato ancora reso noto il prezzo finale.
Specifiche:
Model | P7F7-E WS SuperComputer |
CPU Socket | 1x LGA1156 socket for Intel® Xeon™ 3400 series, Core™ i7/Core™ i5/ Core™ i3/Pentium® |
Chipset | Intel® Ibex Peak 3450 Chipset/ Nvidia NF200*1 |
Memory | 6 DIMMs, supporting up to 16GB DDR3 2000(O.C.)*/1600/1333MHz.ECC, un-buffered memory |
Power Phase | 16 + 3 |
Expansion Slots | 2x PCIe 2.0 x16 (@ x16 or x8) |
2x PCIe 2.0 x16 (@ x8) | |
3x PCIe x1 (@ x1) | |
Multi-GPU | Supports 3-way/2-way NVIDIA® Geforce SLI™ technology |
Supports ATI® CrossFireX™ technology, up to Quad CrossFireX™ | |
CUDA Support | Support up to 4 NVIDIA GPUs |
3x NVIDIA Tesla cards + 1x NVIDIA Quadro fX5800 card up to 960 cores | |
Each core delivers one teraflop of processing power | |
Storage | 2x SATA 6Gb/s, 6x SATA 3Gb/s |
Gigabit LAN | 2 |
Audio | 10-channel output, DTS encoding |
Other I/O ports | 1*PS/2, 1*IEEE1394a, 2*LAN, 6*USB(4 for USB2.0 and 2 for USB3.0, 1*Optical S/PDIF out, 1*DVI-I output pot |
USB | 2 USB 3.0 ports ( 2 ports at back panel) |
1394a | 2 1394b ports (2 at back panel) + 1 1394a port (1 at back panel) |
Form Factor | ATX Form Factor, 12 inches x 9.6 inches ( 30.5cm x 24.5cm ) |
